Mira Event XS Thermostatic MK1 (1532.002) Shower Spares
- Mira 1532.002
- 23 spares listed
All available shower spares/replacement parts to fit the Mira Event XS Thermostatic MK1 (1532.002).
Use the main diagram to identify the shower spare(s) you need to replace. Then use the table below to locate your relevant part(s).
Not what you're looking for? Try our unique Shower Spares Finder.
Need any help identifying the fault with your shower? Take a look at our handy Fault Finder page.
Otherwise please feel free to contact us.
There are 18 currently available spares for the Mira Event XS Thermostatic MK1 (1532.002).
These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:
Do you have a question about the Mira Event XS Thermostatic MK1 (1532.002)?
Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.
Shower button has broken will only switch on by inserting a wooden peg through on/off button. What part would I need?
The replacement part you require will be 453.05 front cover.
hi my event xs shower on/off won't stay on . you have to hold the button in to make it work

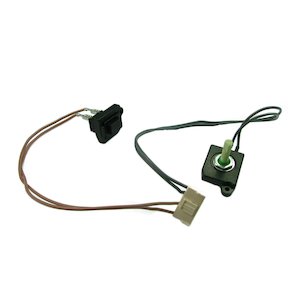

You will require part number 453.10 harness which includes switch.
I am looking for the diaphragm washer that is on the end of the solenoids shutoff valve in a mira xs pump electric shower.
Posted to cork Ireland.
Unfortunately you cannot purchase spares for the solenoid valve, you would have to purchase it as a whole, which is part number 453.13.
National Shower Spares Support
The on off button stuck in on our shower and would not release. Took cover off and plastic piece fell out. -looked like it was part of on off mechanism? How do i fix problem
Hello, you will need either a new cover 453.05 or a new switch (loom) 453.10
We're do I fine the part number on the mira event xs power shower pump
Hello, the punp in an XS is 453.03
on off switch on my Mira event xs t is stuck on. Can this be replaced and which part should I order?
Thanks . Andrew Cann
Hello, you will need to replace the harness assembly. part number 453.10
what Kw is this shower?
Hello, this is not a heater, it is a mixer, it has to be fed with hot and cold gravity water. the only power is for the pump (165watt approx)
After switching my event xs thermostatic shower off ,it still drips continually. What part needs changing to stop this. Regards denis
Hello, it will require a new solenoid valve , part number 453.13
Can the on/off button be purchased separately? Or are the buttons from any other models compatible?
The button is only available with the front cover
Hi, I know that you do front covers for the Mira xs thermo .but my question is do you do rear covers?
Hello, very sorry, Mira have never realeased the back box as a spare
Just bought and fitted a new filter kit for my mira event xs. I did this as I live in a limescale area and the shower unit is very noisy. I thought maybe changing the filters might make the water flow better, however after removing the old filters they were still quite good.
So, do I replace the motor or new shower unit...
Hello, the motors do get noisy as the get worn/old, change the pump/motor and it should be back to normal, part number for the pump is 453.03.
Having a problem with my event xs thermostatic. The pump doesn't spin. I can turn it with a screwdriver but it's stiff. After that it will pump for a few seconds then lock up again and the water just trickles out. There is depth left of the brushes and you can see them arching to the motor but it won't spin. Do I need a new motor? Or are there other things to check first
Hello, yes it sounds like the motor is worn out.
My Mira Event XS Thermostatic has cut out mid shower. The shower fuse has not blown - any suggestions as to where to start investigating?
Hello, do you mean the flow has stopped or that the pump has stopped but water is still flowing slowly, if the flow has totally stopped, you need a new solenoid valve 453.13.
if the flow is still there but the pump has stopped you most probably need a new pump 453.03
My Mira XS thermostatic has stopped working. The on/ off switch does my not stay on although the shower runs if I keep my finger on the on/off switch. I suspect a faulty on/off switch and I think that means a new Harness Assembly.
What do you think, I've had the shower since 2009 and had no problems. Is fitting a Harness Assembly a job for an electrician or can it be done diy?
The harness item 453.10 will be the correct item it has a clip on push connector reasonably strait forward to fit or contact a qualified electrician.
had a power surge now my shower unit runs but the water just trickles out.
Hello, it sounds like the pump has stopped working, the PCB has probably been damaged.
most common for no hot water on event xs themostatic
If the flow is still the same, then it will require a new temp cartridge.
If the flow has also reduced, you need to find out why, it may be an air lock or a blocked inlet filter.
I need to replace a mira event xs hose and Showerhead _ do you supply these please? Thank you Sarah
Hello, please use this link to the Logic fittings
