You're viewing spare parts for: Mira Beat slide bar kit - chrome (2.1703.018)
- Mira 2.1703.018
- 14 spares listed
All available replacement spare parts to fit the Mira Beat slide bar kit - chrome (2.1703.018).

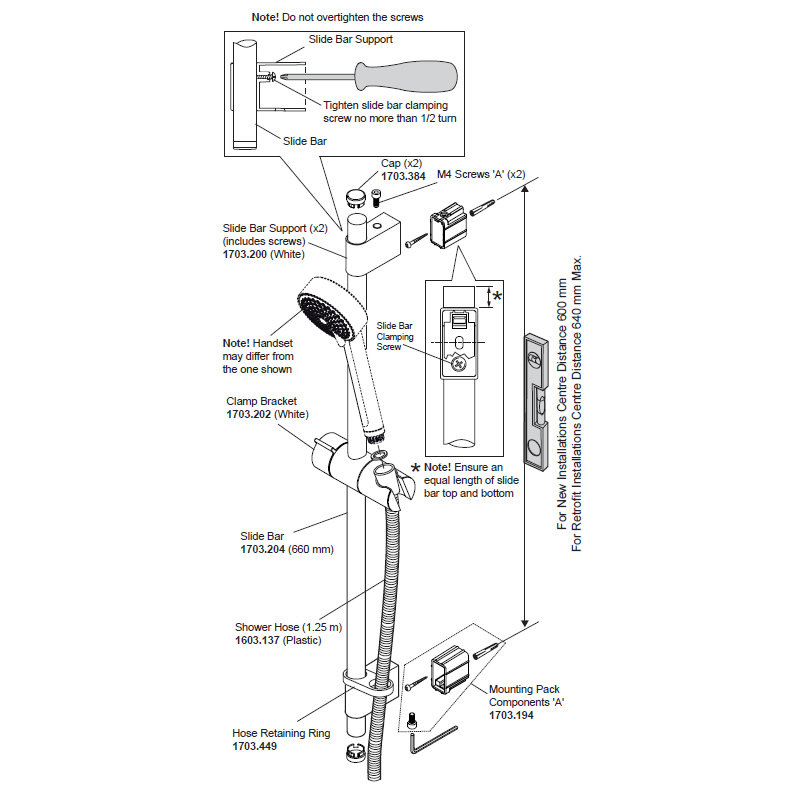

Use the main diagram to identify the spare part(s) you need to replace. Then use the table below to locate your relevant part(s).
There are 11 currently available spares for the Mira Beat slide bar kit - chrome (2.1703.018).
These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:
Do you have a question about the Mira Beat slide bar kit - chrome (2.1703.018)?
Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.
What is the diameter of the rail?
Hello, it is 19mm
What are the measurements of this rail?
Hello, the maximum distance between the fixing brackets is 620mm, but it will slide down to a recommended min of 580mm, but could go a little bit more than that.
How far do the brackets protrude from the wall. My original only faro trudges 60mm which keeps splitting the hose due to the acute angle.
Hello, the measurement form the tiles tom the centre of the rail is only 50mm, a better option is the Mira Response rail set RF9 Chrome
