All available shower spares/replacement parts to fit the Mira Advance ATL (2007-2010).

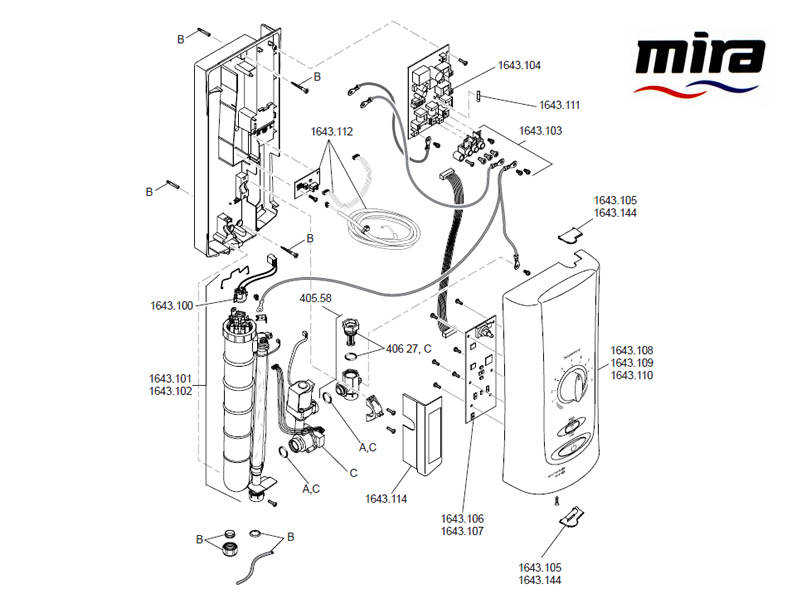

Use the main diagram to identify the shower spare(s) you need to replace. Then use the table below to locate your relevant part(s).
Not what you're looking for? Try our unique Shower Spares Finder.
Need any help identifying the fault with your shower? Take a look at our handy Fault Finder page.
Otherwise please feel free to contact us.
There are 18 currently available spares for the Mira Advance ATL (2007-2010).
These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:£44.10 Back-Order Only£114.85 Back-Order Only£81.75 Add to Basket£110.70 Add to Basket£21.30 Add to Basket
Want to modernise your shower, or perhaps it's seen better days and spares won't fix the problem?
The following product(s) are suitable complete replacements for the Mira Advance ATL (2007-2010), at great prices:
Do you have a question about the Mira Advance ATL (2007-2010)?
Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.
My MIRA ADVANCE ATL Thermostatic shower simply wont turn on. There is main power (240v) to the Relay PCB but the front switches do nothing, there aren't even any indicator lights. I checked the ribbon cable to the front cover for any signs of power but there doesnt seem to be any. What are my options? Also do you stock part number 1643-105/144 (the little cover inset that often falls off)?
You will require the front cover which includes the pcb
Part number 1643.251
Water continues to flow from shower head
Hello, you will need a new flow valve 1643.149. have you tried just bleeding it using the blue bleed valve on the top of the flow valve. sometimes that will cure it.
I've a mire advance memory, sometimes there's a increase of pressure, temperature then a decrease in both ,resulting in the service light coming on
what can I replace to service it myself
Hello, you need to bleed the unit first, via the blue air button on top of the flow valve, if that does not cure it, you will probabaly need a new flow valve.
Hi, my mira advance has just started cutting out after 10-20 seconds, with the low pressure light coming on. I have checked the filters and changed the head and hose but with no luck. Could you tell me which part has likely gone wrong. Thanks
Hello, please can you try to purge the unit with the blue bleed button (on the top of the flow valve)
If this fails to rectify the fault, you need to replace the flow valve.
The Clamp Bracket on my Mira Advance Shower has broken so the handset keeps falling out. I have measured the slide bar and its diameter is about 100mm. The shower was purchased in 1998 ish and not 2007-2010 as the product you offer. Can you help please?
the part number could be one of two 411.23 or 1644.124
there doesn't seem to be any difference when switching between high and low pressure, can u help
Hello, this is a very complex unit to diagnose, but it sounds like a failed heater element, you really need a MIRA engineer to diagnose it, call them on 01242262888
I'm trying to find a replacement plastic on /off power witch for the MIRA Advance ATL thermostatic. The diagram seems to indicate part nos XXXX -108/109/110 are the parts in the panel, but the bit I need does not seem to be listed. Can you buy a new switch or do I have to get a complete new front panel ?
Hello, you will need to buy the whole cover.
Mira advance thermostatic ATL 9.8kw . When switched off the shower head is still dripping , could you tell me the new part l need to order please .
Hello, you will need to replace the flow valve, part number 1643.149
Can I replace my Mira advance thermostatic with a new one with out altering any off the pluming and electrics
Hello, yes the plumbing and electrics are in the same positions.
I have the Mira advance atl flex, which works fine, however the case has been knocked and the top screw holes in the back panel securing it to the wall have broken resulting in the unit tilting forward away from the wall. My question is can the back panel only be replaced without all the internals?
Hello, we are very sorry but Mira do not supply the back boxes for any of their electric showers.
Trying to purchase pack of four 'O' seals for my Mira Advance ATL Thermostatic. Are they still available as a replacement pack or do I have to purchase an equivalent, if so what am I know looking for, or even a new spray plate assembly plate or do I just purchase a new complete handset and again if so what do you recommend?
Hello, the part you need is 1643.148
Had my bathroom re-fitted,when shower put back on there is low pressure.plumbers said that all connections are still the same.could you tell me what could be causing this Mira advance atl thermostatic. 9kw
Hello, did anyone 'purge' the flow valve, using the blue air bleed button on top of the flow valve?, If not air may be trapped causing the flow valve to show 'low pressure'
