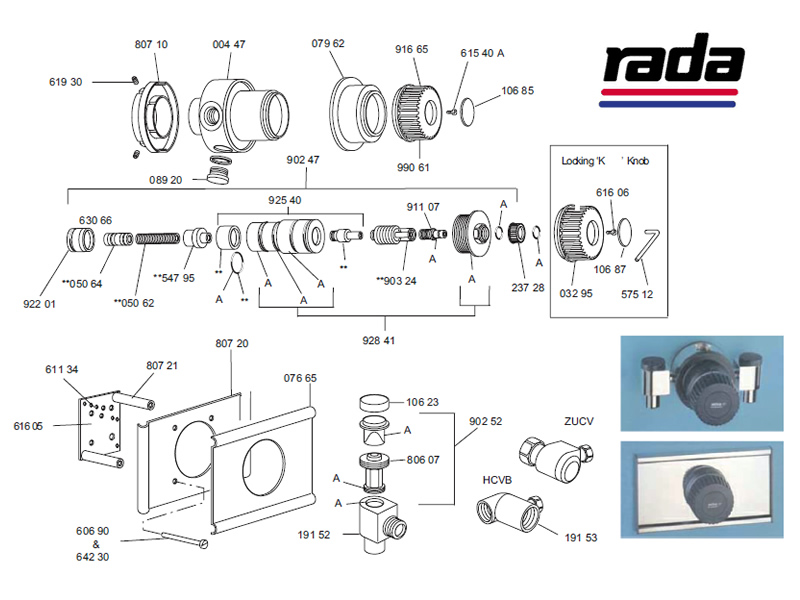

Rada 17 shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Rada 17

Manufacturer: Rada

Product Type: Mixer Showers

Categories: rada mixer showers, mixer showers

All available shower spares/replacement parts to fit the Rada 17.

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Mira screw (606.90) - 606.90 Mira screw (606.90) £9.25 Add to Basket More Info
Mira/Rada M4 screw (615.40) - 615.40 Mira/Rada M4 screw (615.40) £9.25 Add to Basket More Info
Rada hub pack (237.28) - 237.28 Rada hub pack (237.28) £4.80 Add to Basket More Info
Mira 2.5mm allen wrench key (575.12) - 575.12 Mira 2.5mm allen wrench key (575.12) £9.25 Add to Basket More Info
Rada 17 backplate assembly (807.10) - 807.10 Rada 17 backplate assembly (807.10) £11.65 Add to Basket More Info
Rada 17 thermoscopic cartridge (902.47) - 902.47 Rada 17 thermoscopic cartridge (902.47) £433.75 Add to Basket More Info
Rada 17 Body assembly (004.47) - 004.47 Rada 17 Body assembly (004.47) £170.10 Add to Basket More Info
Rada 17 locking 'K' knob (032.95) - 032.95 Rada 17 locking 'K' knob (032.95) £8.80 Add to Basket More Info
Rada 17 overload spring (050.64) - 050.64 Rada 17 overload spring (050.64) £8.80 Add to Basket More Info
Rada concealing plate (076.65) - 076.65 Rada concealing plate (076.65) £30.35 Add to Basket More Info
Rada 17 body shroud (079.62) - 079.62 Rada 17 body shroud (079.62) £8.80 Add to Basket More Info
Rada drain plug (089.20) - 089.20 Rada drain plug (089.20) £7.20 Add to Basket More Info
Rada concealing cap (106.23) - 106.23 Rada concealing cap (106.23) £8.80 Add to Basket More Info
Rada 17 concealing cap (106.85) - 106.85 Rada 17 concealing cap (106.85) £8.80 Add to Basket More Info
Rada 17 concealing cap for 'K' knob (106.87) - 106.87 Rada 17 concealing cap for 'K' knob (106.87)   Discontinued More Info
Rada 17 ACV body (191.52) - 191.52 Rada 17 ACV body (191.52)   Discontinued More Info
Rada 17 HCVB body (191.53) - 191.53 Rada 17 HCVB body (191.53)   Discontinued More Info
Rada 17 shuttle seat (547.95) - 547.95 Rada 17 shuttle seat (547.95) £46.15 Add to Basket More Info
Rada 3mm allen wrench key (575.09) - 575.09 Rada 3mm allen wrench key (575.09) £8.80 Add to Basket More Info
Rada wall screw (611.34) - 611.34 Rada wall screw (611.34) £8.80 Add to Basket More Info
Rada backplate screw (616.05) - 616.05 Rada backplate screw (616.05) £8.80 Add to Basket More Info
Rada socket screw (616.06) - 616.06 Rada socket screw (616.06) £8.80 Add to Basket More Info
Rada grub screw (619.30) - 619.30 Rada grub screw (619.30) £8.80 Add to Basket More Info
Rada o'seal (630.66) - 630.66 Rada o'seal (630.66) £8.80 Add to Basket More Info
Rada washer - M4 brass (642.30) - 642.30 Rada washer - M4 brass (642.30) £8.80 Add to Basket More Info
Rada check valve housing assembly (806.07) - 806.07 Rada check valve housing assembly (806.07) £38.25 Add to Basket More Info
Rada mounting bracket assembly (807.20) - 807.20 Rada mounting bracket assembly (807.20) £30.35 Add to Basket More Info
Rada backplate assembly (807.21) - 807.21 Rada backplate assembly (807.21) £40.90 Add to Basket More Info

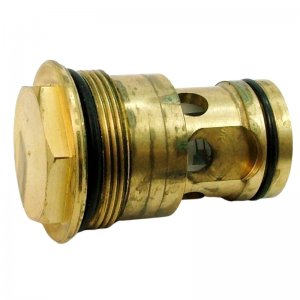

Rada 17 check valve cartridge (902.52) - 902.52 Rada 17 check valve cartridge (902.52) £63.30 Add to Basket More Info
Rada 17 thermoscopic assembly and drive nut (903.24) - 903.24 Rada 17 thermoscopic assembly and drive nut (903.24) £143.70 Add to Basket More Info
Rada 17 temperature spindle assembly (911.07) - 911.07 Rada 17 temperature spindle assembly (911.07) £15.85 Add to Basket More Info
Rada 17 temperature knob assembly (916.65) - 916.65 Rada 17 temperature knob assembly (916.65) £10.15 Add to Basket More Info
Rada 17 retaining cap assembly (922.01) - 922.01 Rada 17 retaining cap assembly (922.01) £23.75 Add to Basket More Info
Rada 17 shuttle and actuator assembly (925.40) - 925.40 Rada 17 shuttle and actuator assembly (925.40) £52.75 Add to Basket More Info
Rada 17 headnut and port sleeve assembly (928.41) - 928.41 Rada 17 headnut and port sleeve assembly (928.41) £141.10 Add to Basket More Info
Rada 17 critical component pack (935.83) - 935.83 Rada 17 critical component pack (935.83) £214.90 Add to Basket More Info
Rada 17 service pack (936.72) A 936.72 Rada 17 service pack (936.72) £22.70 Add to Basket More Info
Rada 17 temperature indicator band (990.61) - 990.61 Rada 17 temperature indicator band (990.61)   Discontinued More Info

No complete replacement products found.
