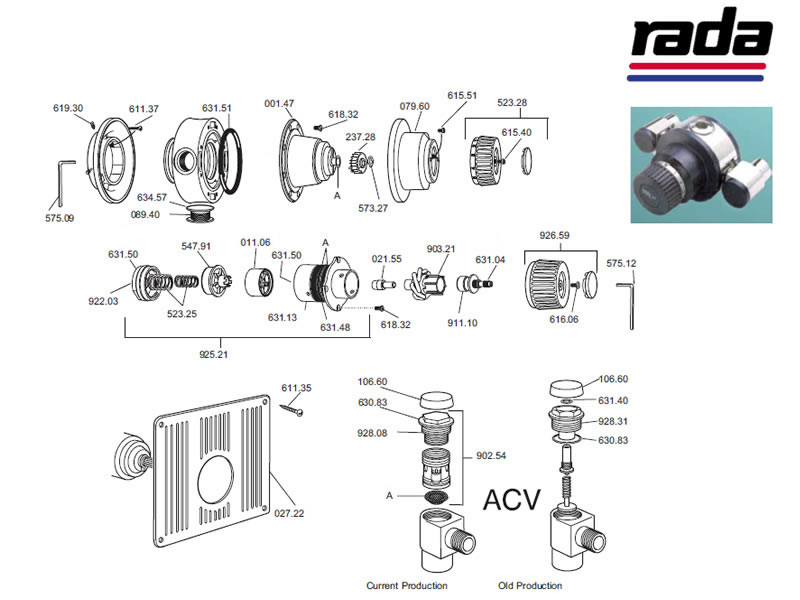

Rada 25 shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Rada 25

Manufacturer: Rada

Product Type: Mixer Showers

Categories: rada mixer showers, mixer showers

All available shower spares/replacement parts to fit the Rada 25.

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Hover over any image thumbnail in the table below to see a larger version of that product.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Rada 25 service pack (936.46) A 936.46 Rada 25 service pack (936.46) £27.70 Add to Basket More Info
Rada Thermostat pack (523.06) 1b 523.06 Rada Thermostat pack (523.06) £151.65 Add to Basket More Info
Rada 1398.004 thermostatic conversion set for the Rada 25 (1398.004) 2 1398.004 Rada 1398.004 thermostatic conversion set for the Rada 25 (1398.004) £400.80 Add to Basket More Info
Rada cover shroud - Blue (079.60) - 079.60 Rada cover shroud - Blue (079.60) £4.80 Add to Basket More Info
Rada 25 knob pack (523.28) - 523.28 Rada 25 knob pack (523.28) £14.65 Add to Basket More Info
Mira/Rada M4 screw (615.40) - 615.40 Mira/Rada M4 screw (615.40) £9.25 Add to Basket More Info
Rada 25 check valve concealing cap (106.60) - 106.60 Rada 25 check valve concealing cap (106.60) £8.80 Add to Basket More Info
Rada hub pack (237.28) - 237.28 Rada hub pack (237.28) £4.80 Add to Basket More Info
Mira 2.5mm allen wrench key (575.12) - 575.12 Mira 2.5mm allen wrench key (575.12) £9.25 Add to Basket More Info

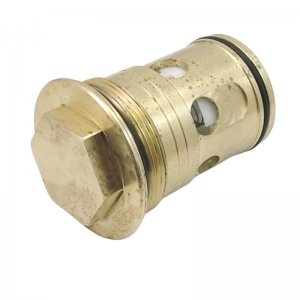

Rada 25 cartridge assembly ACV (902.54) - 902.54 Rada 25 cartridge assembly ACV (902.54) £80.45 Add to Basket More Info
Rada temperature spindle assembly (911.10) - 911.10 Rada temperature spindle assembly (911.10) £9.60 Add to Basket More Info
Rada 25 cover assembly (001.47) - 001.47 Rada 25 cover assembly (001.47) £171.40 Add to Basket More Info
Rada 25 shuttle assembly (011.06) - 011.06 Rada 25 shuttle assembly (011.06) £69.90 Add to Basket More Info
Rada Actuator assembly (021.55) - 021.55 Rada Actuator assembly (021.55)   Discontinued More Info
Rada 25 panel plate (027.22) - 027.22 Rada 25 panel plate (027.22)   Discontinued More Info
Rada drain plug (089.40) - 089.40 Rada drain plug (089.40) £16.80 Add to Basket More Info
Rada spring pack (523.25) - 523.25 Rada spring pack (523.25) £8.80 Add to Basket More Info
Rada 25 shuttle seat assembly (547.91) - 547.91 Rada 25 shuttle seat assembly (547.91) £65.80 Add to Basket More Info
Rada circlip (573.27) - 573.27 Rada circlip (573.27) £8.80 Add to Basket More Info
Rada 3mm allen wrench key (575.09) - 575.09 Rada 3mm allen wrench key (575.09) £8.80 Add to Basket More Info
Rada wall screw (611.35) - 611.35 Rada wall screw (611.35) £8.80 Add to Basket More Info
Mira wall screw (611.37) - 611.37 Mira wall screw (611.37) £9.25 Add to Basket More Info
Rada M3 screw (615.51) - 615.51 Rada M3 screw (615.51) £8.80 Add to Basket More Info
Rada socket screw (616.06) - 616.06 Rada socket screw (616.06) £8.80 Add to Basket More Info
Rada cover screw M5x12 (618.32) - 618.32 Rada cover screw M5x12 (618.32) £8.80 Add to Basket More Info
Rada grub screw (619.30) - 619.30 Rada grub screw (619.30) £8.80 Add to Basket More Info
Rada seal (630.83) - 630.83 Rada seal (630.83) £8.80 Add to Basket More Info
Rada O'seal (631.13) - 631.13 Rada O'seal (631.13)   Discontinued More Info

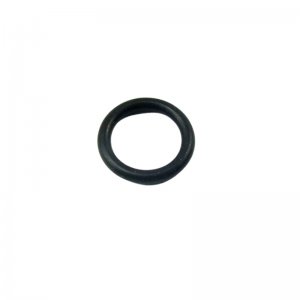

Rada O seal (631.40) - 631.40 Rada O seal (631.40) £8.80 Add to Basket More Info
Rada O'seal (631.48) - 631.48 Rada O'seal (631.48)   Discontinued More Info
Rada O'seal (631.50) - 631.50 Rada O'seal (631.50)   Discontinued More Info
Rada gasket (634.57) - 634.57 Rada gasket (634.57) £8.80 Add to Basket More Info
Rada pressure washer (639.67) - 639.67 Rada pressure washer (639.67)   Replaced (click to view) More Info
Rada thermostat assembly (903.21) - 903.21 Rada thermostat assembly (903.21)   Replaced (click to view) More Info
Rada 25 retaining cap assembly (922.03) - 922.03 Rada 25 retaining cap assembly (922.03) £30.35 Add to Basket More Info
Rada 25 shuttle and sleeve assembly (925.21) - 925.21 Rada 25 shuttle and sleeve assembly (925.21) £60.00 Add to Basket More Info

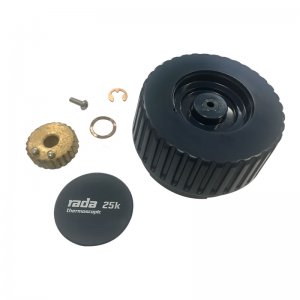

Rada 25 locking set (926.59) - 926.59 Rada 25 locking set (926.59) £29.00 Add to Basket More Info
Rada CV headnut assembly (928.08) - 928.08 Rada CV headnut assembly (928.08)   Discontinued More Info
Rada CV headnut assembly (928.31) - 928.31 Rada CV headnut assembly (928.31)   Discontinued More Info

No complete replacement products found.
