Rada 4M (4M) shower spares and parts | Rada 4M | National Shower Spares

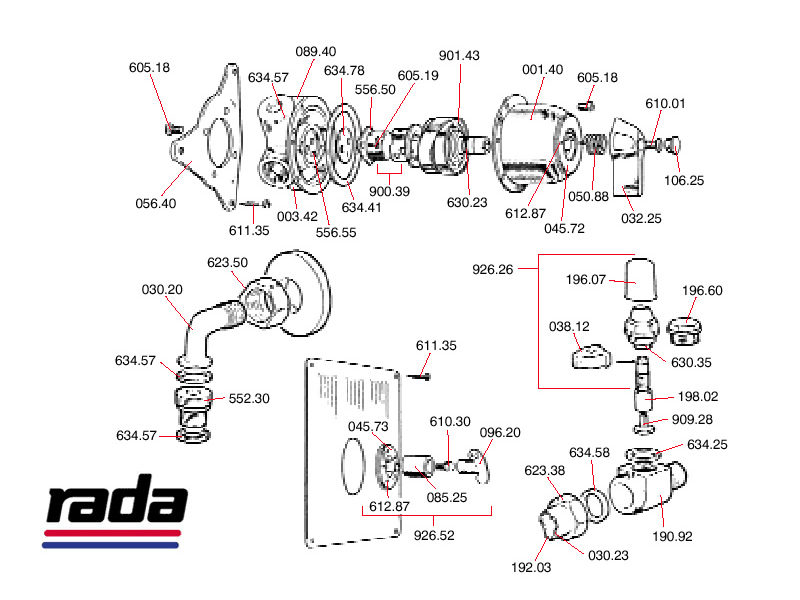

Rada 4M (4M) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Rada 4M (4M)

Manufacturer: Rada

Product Code: Rada 4M

Product Type: Mixer Showers

Categories: rada mixer showers, mixer showers

All available shower spares/replacement parts to fit the Rada 4M (4M).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Rada port and pillar joint (634.78) - 634.78 Rada port and pillar joint (634.78) £8.80 Add to Basket More Info
Rada 4M pillar and sleeve assembly (900.39) - 900.39 Rada 4M pillar and sleeve assembly (900.39) £207.00 Add to Basket More Info

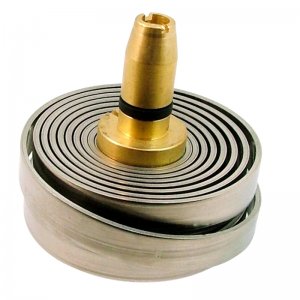

Rada 4M thermostat assembly (901.43) - 901.43 Rada 4M thermostat assembly (901.43) £24.00 Add to Basket More Info
Rada 4M cover shroud (001.40) - 001.40 Rada 4M cover shroud (001.40) £164.80 Add to Basket More Info
Rada 4M base assembly (003.42) - 003.42 Rada 4M base assembly (003.42) £137.10 Add to Basket More Info
Rada 1" union elbow assembly (030.20) - 030.20 Rada 1" union elbow assembly (030.20) £40.00 Add to Basket More Info
Rada 3/4" union elbow (030.23) - 030.23 Rada 3/4" union elbow (030.23) £40.90 Add to Basket More Info

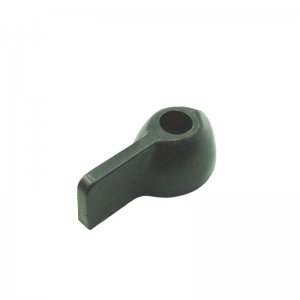

Rada temperature control knob (032.25) - 032.25 Rada temperature control knob (032.25) £17.40 Add to Basket More Info
Rada check valve isolation control knob (038.12) - 038.12 Rada check valve isolation control knob (038.12) £8.80 Add to Basket More Info
Rada 4M name plate - Rada 4M (045.72) - 045.72 Rada 4M name plate - Rada 4M (045.72) £8.80 Add to Basket More Info
Rada 4M name plate - Rada 4MK (045.73) - 045.73 Rada 4M name plate - Rada 4MK (045.73) £8.80 Add to Basket More Info

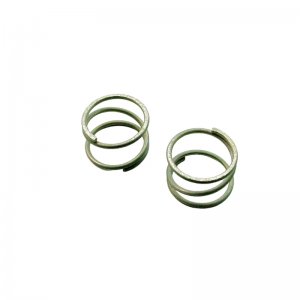

Rada spring (050.88) - 050.88 Rada spring (050.88) £8.80 Add to Basket More Info
Rada back plate assembly (056.40) - 056.40 Rada back plate assembly (056.40) £46.15 Add to Basket More Info
Rada locking shroud (085.25) - 085.25 Rada locking shroud (085.25) £20.95 Add to Basket More Info
Rada drain plug (089.40) - 089.40 Rada drain plug (089.40) £16.80 Add to Basket More Info
Rada locking key (096.20) - 096.20 Rada locking key (096.20) £9.00 Add to Basket More Info
Rada cover cap (106.25) - 106.25 Rada cover cap (106.25) £10.95 Add to Basket More Info
Rada body check valve (190.92) - 190.92 Rada body check valve (190.92)   Discontinued More Info
Rada 3/4" horizontal union (192.03) - 192.03 Rada 3/4" horizontal union (192.03)   Discontinued More Info
Rada cap I.C V/S.M.V (196.07) - 196.07 Rada cap I.C V/S.M.V (196.07) £8.80 Add to Basket More Info
Rada 4M check valve cap 3/4" (196.60) - 196.60 Rada 4M check valve cap 3/4" (196.60)   Discontinued More Info
Rada 4M 3/4" check valve spindle (198.02) - 198.02 Rada 4M 3/4" check valve spindle (198.02)   Discontinued More Info
Rada 1" union adapter (552.30) - 552.30 Rada 1" union adapter (552.30)   Discontinued More Info
Rada pin (556.50) - 556.50 Rada pin (556.50) £8.80 Add to Basket More Info
Rada locating pin (556.55) - 556.55 Rada locating pin (556.55)   Discontinued More Info
Rada screw (605.18) - 605.18 Rada screw (605.18) £8.80 Add to Basket More Info
Rada port and pillar screw (605.19) - 605.19 Rada port and pillar screw (605.19) £8.80 Add to Basket More Info

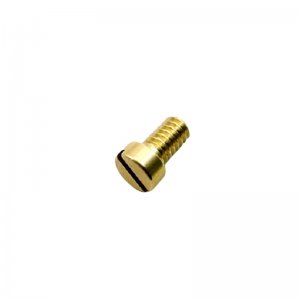

Rada screw (610.01) - 610.01 Rada screw (610.01) £8.80 Add to Basket More Info
Rada acorn bolt (610.30) - 610.30 Rada acorn bolt (610.30) £8.80 Add to Basket More Info
Rada wall screw (611.35) - 611.35 Rada wall screw (611.35) £8.80 Add to Basket More Info
Rada name plate screw (612.87) - 612.87 Rada name plate screw (612.87) £8.80 Add to Basket More Info
Rada 3/4" union nut (623.38) - 623.38 Rada 3/4" union nut (623.38)   Discontinued More Info
Rada 1" union nut (623.50) - 623.50 Rada 1" union nut (623.50)   Discontinued More Info
Rada O'seal (630.23) - 630.23 Rada O'seal (630.23) £8.80 Add to Basket More Info
Rada O'seal (630.35) - 630.35 Rada O'seal (630.35) £8.80 Add to Basket More Info
Rada check valve gasket (634.25) - 634.25 Rada check valve gasket (634.25) £8.80 Add to Basket More Info

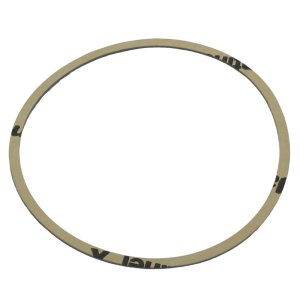

Rada cover joint (634.41) - 634.41 Rada cover joint (634.41) £8.80 Add to Basket More Info
Rada gasket (634.57) - 634.57 Rada gasket (634.57) £8.80 Add to Basket More Info
Rada inlet gasket (634.58) - 634.58 Rada inlet gasket (634.58) £8.80 Add to Basket More Info
Rada 3/4" clack assembly (909.28) - 909.28 Rada 3/4" clack assembly (909.28) £11.25 Add to Basket More Info
Rada 3/4" conversion set (926.26) - 926.26 Rada 3/4" conversion set (926.26) £60.65 Add to Basket More Info
Rada 4MK locking set (926.52) - 926.52 Rada 4MK locking set (926.52) £36.95 Add to Basket More Info

No complete replacement products found.
