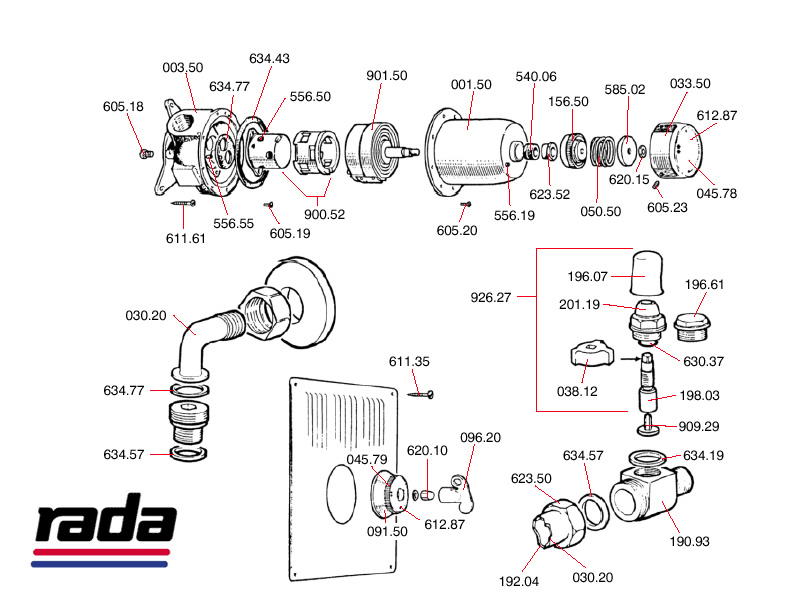

Rada A5 (A5) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Rada A5 (A5)

Manufacturer: Rada

Product Code: Rada A5

Product Type: Mixer Showers

Categories: rada mixer showers, mixer showers

All available shower spares/replacement parts to fit the Rada A5 (A5).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details

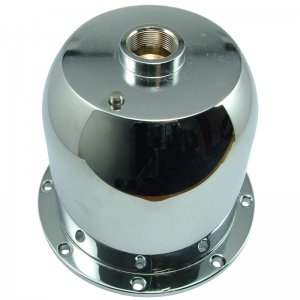

Rada A5 cover assembly (001.50) - 001.50 Rada A5 cover assembly (001.50) £279.50 Add to Basket More Info
Rada A5/55 base assembly (003.50) - 003.50 Rada A5/55 base assembly (003.50) £385.00 Add to Basket More Info
Rada 1" union elbow assembly (030.20) - 030.20 Rada 1" union elbow assembly (030.20) £40.00 Add to Basket More Info
Rada A5 temperature regulating knob assembly (033.50) - 033.50 Rada A5 temperature regulating knob assembly (033.50) £9.60 Add to Basket More Info
Rada check valve isolation control knob (038.12) - 038.12 Rada check valve isolation control knob (038.12) £8.80 Add to Basket More Info
Rada A5 name plate (045.78) - 045.78 Rada A5 name plate (045.78) £8.80 Add to Basket More Info
Rada A5K name plate (045.79) - 045.79 Rada A5K name plate (045.79) £11.75 Add to Basket More Info
Rada A5 spring assembly (050.50) - 050.50 Rada A5 spring assembly (050.50) £13.60 Add to Basket More Info
Rada A5 locking plate (091.50) - 091.50 Rada A5 locking plate (091.50) £35.60 Add to Basket More Info
Rada locking key (096.20) - 096.20 Rada locking key (096.20) £9.00 Add to Basket More Info
Rada A5 splined bush (156.50) - 156.50 Rada A5 splined bush (156.50) £69.90 Add to Basket More Info
Rada body check valve 1" (190.93) - 190.93 Rada body check valve 1" (190.93)   Discontinued More Info
Rada horizontal union 1" (192.04) - 192.04 Rada horizontal union 1" (192.04)   Discontinued More Info
Rada cap I.C V/S.M.V (196.07) - 196.07 Rada cap I.C V/S.M.V (196.07) £8.80 Add to Basket More Info
Rada 1" checkvalve cap (196.61) - 196.61 Rada 1" checkvalve cap (196.61) £4.20 Add to Basket More Info
Rada 1" checkvalve spindle (198.03) - 198.03 Rada 1" checkvalve spindle (198.03)   Discontinued More Info
Rada 1" checkvalve head nut (201.19) - 201.19 Rada 1" checkvalve head nut (201.19)   Discontinued More Info
Rada A5 gland packing (540.06) - 540.06 Rada A5 gland packing (540.06) £11.50 Add to Basket More Info
Rada A5 stop pin (556.19) - 556.19 Rada A5 stop pin (556.19) £8.80 Add to Basket More Info
Rada pin (556.50) - 556.50 Rada pin (556.50) £8.80 Add to Basket More Info
Rada locating pin (556.55) - 556.55 Rada locating pin (556.55)   Discontinued More Info
Rada A5 spring retainer (585.02) - 585.02 Rada A5 spring retainer (585.02) £18.60 Add to Basket More Info
Rada screw (605.18) - 605.18 Rada screw (605.18) £8.80 Add to Basket More Info
Rada port and pillar screw (605.19) - 605.19 Rada port and pillar screw (605.19) £8.80 Add to Basket More Info

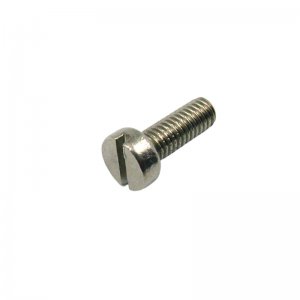

Rada screw (605.20) - 605.20 Rada screw (605.20) £8.80 Add to Basket More Info
Rada screw (605.23) - 605.23 Rada screw (605.23) £8.80 Add to Basket More Info
Rada wall screw (611.35) - 611.35 Rada wall screw (611.35) £8.80 Add to Basket More Info
Rada wall screw (611.61) - 611.61 Rada wall screw (611.61) £8.80 Add to Basket More Info
Rada name plate screw (612.87) - 612.87 Rada name plate screw (612.87) £8.80 Add to Basket More Info
Rada A5 acorn nut (620.10) - 620.10 Rada A5 acorn nut (620.10) £8.80 Add to Basket More Info
Rada spring retaining nut (620.15) - 620.15 Rada spring retaining nut (620.15) £8.80 Add to Basket More Info
Rada A5 gland nut (623.52) - 623.52 Rada A5 gland nut (623.52) £8.80 Add to Basket More Info
Rada O'seal (630.37) - 630.37 Rada O'seal (630.37) £8.80 Add to Basket More Info
Rada gasket (634.19) - 634.19 Rada gasket (634.19)   Discontinued More Info
Rada A5 cover joint (634.43) - 634.43 Rada A5 cover joint (634.43) £8.80 Add to Basket More Info
Rada gasket (634.57) - 634.57 Rada gasket (634.57) £8.80 Add to Basket More Info
Rada port and pillar joint (634.77) - 634.77 Rada port and pillar joint (634.77) £8.80 Add to Basket More Info
Rada A5 pillar and sleeve assembly (900.52) - 900.52 Rada A5 pillar and sleeve assembly (900.52) £18.00 Add to Basket More Info

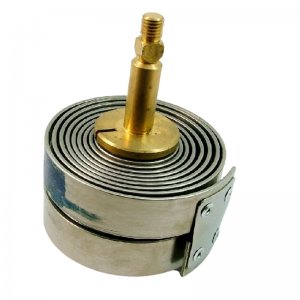

Rada A5 thermostat assembly (901.50) - 901.50 Rada A5 thermostat assembly (901.50) £474.65 Add to Basket More Info
Rada 1" clack assembly (909.29) - 909.29 Rada 1" clack assembly (909.29) £14.75 Add to Basket More Info

No complete replacement products found.

Do you have a question about the "Rada A5 (A5)"?

Click the button below to write and send a question to one of our expert members of staff and we will e-mail you back a direct response. If we feel the information might be useful to other customers, we will add your question below for others to see.

Ask a Question
