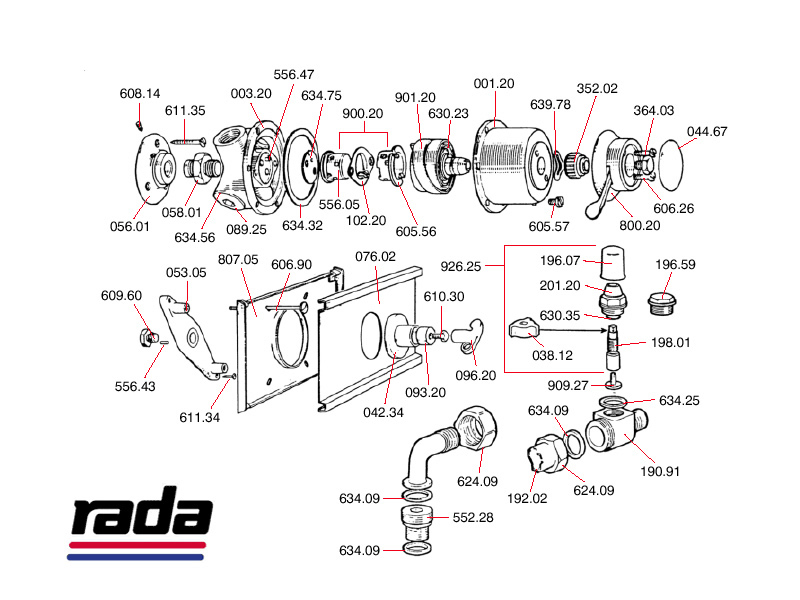

Rada G2M (G2M) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Rada G2M (G2M)

Manufacturer: Rada

Product Code: Rada G2M

Product Type: Mixer Showers

Categories: rada mixer showers, mixer showers

All available shower spares/replacement parts to fit the Rada G2M (G2M).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Mira temperature lever fixing screw (606.26) - 606.26 Mira temperature lever fixing screw (606.26) £9.25 Add to Basket More Info
Mira gasket 722 & Mira 8 inlet seal - singles (634.09) - 634.09 Mira gasket 722 & Mira 8 inlet seal - singles (634.09) £9.25 Add to Basket More Info
Mira screw (606.90) - 606.90 Mira screw (606.90) £9.25 Add to Basket More Info
Mira nipple adapter (552.28) - 552.28 Mira nipple adapter (552.28) £16.60 Add to Basket More Info
Rada G2M cover assembly (001.20) - 001.20 Rada G2M cover assembly (001.20) £106.80 Add to Basket More Info
Rada G2M base assembly (003.20) - 003.20 Rada G2M base assembly (003.20) £104.15 Add to Basket More Info
Rada check valve isolation control knob (038.12) - 038.12 Rada check valve isolation control knob (038.12) £8.80 Add to Basket More Info
Rada G2M name plate - G2MK (042.34) - 042.34 Rada G2M name plate - G2MK (042.34)   Discontinued More Info
Rada G2M name plate - Rada G2M (044.67) - 044.67 Rada G2M name plate - Rada G2M (044.67) £8.80 Add to Basket More Info
Rada built-in back plate assembly (053.05) - 053.05 Rada built-in back plate assembly (053.05)   Discontinued More Info
Rada back plate assembly (056.01) - 056.01 Rada back plate assembly (056.01) £25.20 Add to Basket More Info

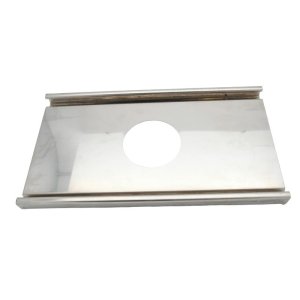

Rada G2M concealing plate assembly (076.02) - 076.02 Rada G2M concealing plate assembly (076.02) £38.20 Add to Basket More Info
Mira drain plug (089.25) - 089.25 Mira drain plug (089.25) £9.25 Add to Basket More Info
Rada locking piece (093.20) - 093.20 Rada locking piece (093.20) £8.80 Add to Basket More Info
Rada locking key (096.20) - 096.20 Rada locking key (096.20) £9.00 Add to Basket More Info
Rada G2M retaining ring (102.20) - 102.20 Rada G2M retaining ring (102.20) £10.95 Add to Basket More Info
Rada body checkvalve (190.91) - 190.91 Rada body checkvalve (190.91)   Discontinued More Info
Rada 1/2" horizontal union (192.02) - 192.02 Rada 1/2" horizontal union (192.02)   Discontinued More Info
Rada cap I.C V/S.M.V (196.07) - 196.07 Rada cap I.C V/S.M.V (196.07) £8.80 Add to Basket More Info
Rada 1/2" checkvalve cap (196.59) - 196.59 Rada 1/2" checkvalve cap (196.59) £12.90 Add to Basket More Info
Rada 1/2" checkvalve spindle (198.01) - 198.01 Rada 1/2" checkvalve spindle (198.01)   Discontinued More Info
Rada 1/2" checkvalve headnut (201.20) - 201.20 Rada 1/2" checkvalve headnut (201.20)   Discontinued More Info
Rada geared bush (352.02) - 352.02 Rada geared bush (352.02) £13.85 Add to Basket More Info
Rada geared bush retaining bolt (364.03) - 364.03 Rada geared bush retaining bolt (364.03) £8.80 Add to Basket More Info
Rada stop pin (556.05) - 556.05 Rada stop pin (556.05) £8.80 Add to Basket More Info
Rada locating pin (556.43) - 556.43 Rada locating pin (556.43)   Discontinued More Info
Rada pin (556.47) - 556.47 Rada pin (556.47) £8.80 Add to Basket More Info
Rada screw (605.56) - 605.56 Rada screw (605.56) £8.80 Add to Basket More Info
Rada screw (605.57) - 605.57 Rada screw (605.57) £8.80 Add to Basket More Info
Rada temperature control retaining screw (608.14) - 608.14 Rada temperature control retaining screw (608.14) £8.80 Add to Basket More Info
Rada backplate bolt (609.60) - 609.60 Rada backplate bolt (609.60) £8.80 Add to Basket More Info
Rada acorn bolt (610.30) - 610.30 Rada acorn bolt (610.30) £8.80 Add to Basket More Info
Rada wall screw (611.34) - 611.34 Rada wall screw (611.34) £8.80 Add to Basket More Info
Rada wall screw (611.35) - 611.35 Rada wall screw (611.35) £8.80 Add to Basket More Info
Mira union nut (642.09) - 642.09 Mira union nut (642.09)   Discontinued More Info
Rada O'seal (630.23) - 630.23 Rada O'seal (630.23) £8.80 Add to Basket More Info
Rada O'seal (630.35) - 630.35 Rada O'seal (630.35) £8.80 Add to Basket More Info

No complete replacement products found.
