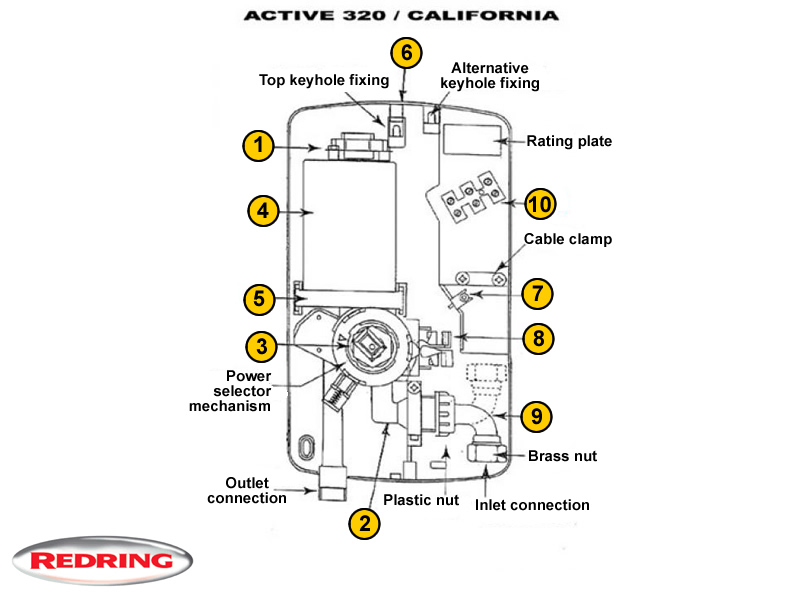

Redring Active 320 (Active 320) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Redring Active 320 (Active 320)

Manufacturer: Redring

Product Code: Redring Active 320

Product Type: Electric Showers

Categories: redring electric showers, electric showers

All available shower spares/replacement parts to fit the Redring Active 320 (Active 320).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Redring PRV washer (93795817) - 93795817 Redring PRV washer (93795817) £4.90 Add to Basket More Info
Redring microswitch assembly (Pressure) (93795804) 8 93795804 Redring microswitch assembly (Pressure) (93795804) £7.90 Add to Basket More Info
Redring 1.25m shower hose - chrome (93797641) - 93797641 Redring 1.25m shower hose - chrome (93797641) £12.50 Add to Basket More Info
Redring thermal cut-out (TCO) assembly (93597871) 1 93597871 Redring thermal cut-out (TCO) assembly (93597871) £13.20 Add to Basket More Info
Redring basic single mode handset - white (93590738) - 93590738 Redring basic single mode handset - white (93590738) £17.10 Add to Basket More Info
Redring 1.25m shower hose - white (93797612) - 93797612 Redring 1.25m shower hose - white (93797612) £10.25 Add to Basket More Info
Croydex 18-25mm push on universal shower head holder - white (AM710122) - AM710122 Croydex 18-25mm push on universal shower head holder - white (AM710122) £6.00 Add to Basket More Info
Redring flow valve top (93590521) 3 93590521 Redring flow valve top (93590521) £12.75 Add to Basket More Info
Redring Active 320/California control knobs (93590536) - 93590536 Redring Active 320/California control knobs (93590536) £11.40 Add to Basket More Info
Redring cylinder O'ring (93795809) - 93795809 Redring cylinder O'ring (93795809) £6.75 Add to Basket More Info
Redring heater can assembly - 8.5kW (93590503) 4 93590503 Redring heater can assembly - 8.5kW (93590503) £52.15 Add to Basket More Info
Redring heater tank clip (93590715) 5 93590715 Redring heater tank clip (93590715) £8.45 Add to Basket More Info
Redring terminal block assembly (93794714) 10 93794714 Redring terminal block assembly (93794714) £7.90 Add to Basket More Info
Redring dummy solenoid elbow assembly (93590522) 2 93590522 Redring dummy solenoid elbow assembly (93590522) £9.65 Add to Basket More Info
Redring heater can assembly - 7.2kW (93590502) 4 93590502 Redring heater can assembly - 7.2kW (93590502) £61.15 Add to Basket More Info
Redring neon cable assembly (93590506) 7 93590506 Redring neon cable assembly (93590506) £8.65 Add to Basket More Info
Redring Active 320 front cover assembly (93590537) - 93590537 Redring Active 320 front cover assembly (93590537)   Discontinued More Info

No complete replacement products found.

Do you have a question about the "Redring Active 320 (Active 320)"?

Click the button below to write and send a question to one of our expert members of staff and we will e-mail you back a direct response. If we feel the information might be useful to other customers, we will add your question below for others to see.

Ask a Question

Which do we need for a redring active 320 no light warm water on full?

You require the thermal cut out on top of can .

I have a redring active 320 shower which is showing the red led light but not giving hot water can you suggest what part will be faulty and if you have this in stock?

Hi
It could be the thermal cut out on top of the heater can or the elements inside the heater that may of failed. If you were to carry out a continuity test over the said items it will confirm the fault. Below is a breakdown of the shower and the parts in question are numbers 1 or 4
https://www.showerspares.com/redring_shower_spares/redring_all/redring_active_320_active_320/
