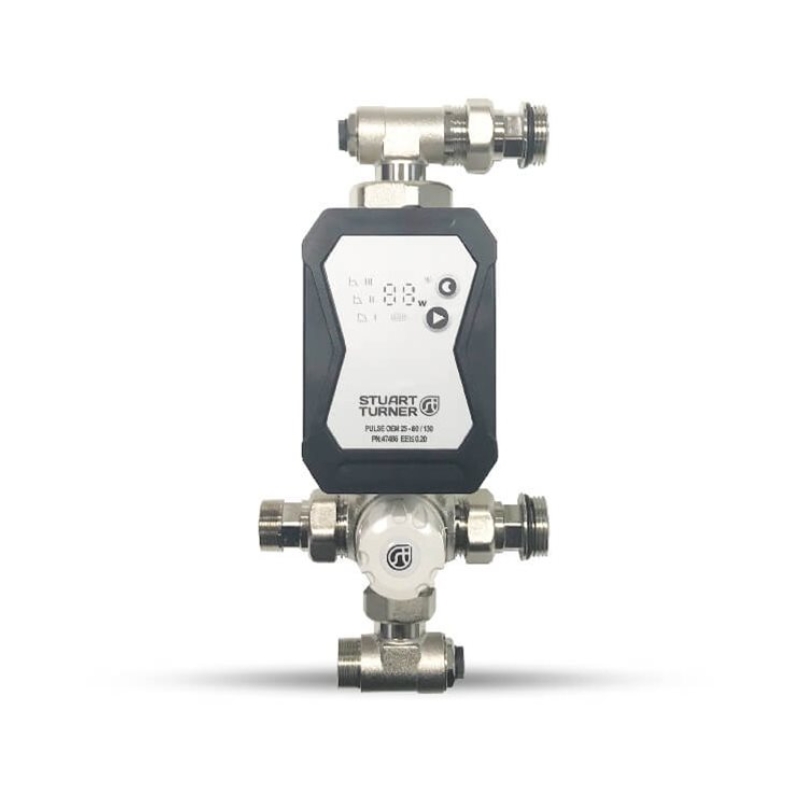

Stuart Turner Stuart Under Floor Heating Multi Zone Mixer Set (47397)

Product Description:

Stuart Turner Stuart Under Floor Heating Multi Zone Mixer Set(47397).

STUART UFH underfloor heating mixer sets are designed to blend flow and return from the heat source in underfloor heating systems which have a heating load of up to 15kW.

The mixer sets have been specifically designed for installation with manifolds and their lightweight design makes them ideal for wall mounting.

Featuring a fully ErP compliant, energy efficient circulator as well as a port for an automatic air vent, the STUART UFH Mixer Set is the installers choice for fuel efficient, reliable underfloor heating installations.

• Blends flow and return to keep a constant floor temperature
• Compact bolt on unit providing quick and simple installation
• Suitable for a heat loading of up to 15kW
• Supplied with an ErP compliant high efficiency STUART 25/60-130 circulator pump
• Circulator pump power cable supplied
• Temperature range 30°C - 65°C
• Maximum pressure 10 bar
• Maximum inlet pressure ratio 2:1
• Maximum inlet temperature 90°C
• Connection sizes 22mm compression for boiler flow and return
• 3 year warranty, including circulator

The Stuart Turner Stuart Under Floor Heating Multi Zone Mixer Set (47397) is a genuine, brand new Stuart Turner product, covered by a Stuart Turner manufacturer's guarantee.

Not what you're looking for? See all Stuart Turner Circulator Pumps.

For advice on this or any product, please call 01452 619836, email us at support@showerspares.com, or see our contact page.

Product Specifications:

• Brand Stuart Turner
• Name Stuart Turner Stuart Under Floor Heating Multi Zone Mixer Set (47397)
• SKU / MPN Stuart Turner 47397
• GTIN / EAN 5050400473978
• Categories Stuart Turner Circulator Pumps
  Circulator Pumps
• Condition Brand New
• Returns 30 day money-back guarantee
• Manufacturer Guarantee Yes
• PDF Guide Download (0.30 MB)
