Aqualisa Quartz Electric (Quartz) Shower Spares
- Aqualisa Quartz
- 20 spares listed
All available shower spares/replacement parts to fit the Aqualisa Quartz Electric (Quartz).
Use the main diagram to identify the shower spare(s) you need to replace. Then use the table below to locate your relevant part(s).
There are 18 currently available spares for the Aqualisa Quartz Electric (Quartz).
These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:£124.80 Add to Basket£163.40 Add to Basket£178.60 Add to Basket£25.60 Add to Basket£70.80 Add to Basket£82.00 Add to Basket£87.50 Add to Basket
Do you have a question about the Aqualisa Quartz Electric (Quartz)?
Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.
HI, my shower is New Quartz Electric 8.5Kw White/Chrome QZE8521 and I need the internal flat on/off switch please, is it available?
The on off switch is part of the front cover.
Do you sell just the pcb..or do they only come with front houseing aqualisa quartz electric 8.5
The p c b is only supplied with the front cover.
I have a aqualisa quartz 9.5, when I turn it on it runs for about 20s then turns is self off. I have tried on lowest setting and also highest setting but make no difference. It does not tip electricity, I can simply turn it back on but again after about 20s it turns off?
Hello, it sounds like the solenoid is packing in, you can not buy spares for the unit, just a replacement 'engine'
Does the replacement front cover for the Aqualiser Quartz Electric 8.5 include the circuit board at the on-off switch or is it just the plastic shell?
Hello, yes the cover includes the pcb/on-off switch.
I have had the Quartz 10.5 for 6 years it has started to only supply cold water is it the New Engine i require?
It will be the replacement engin you will require.
Hi, we have an Aqualisa Quartz 8.5 unit. It starts off hot but then runs cold. If you turn it off and on again the water runs hot for a bit then goes cold again. Any spares or is it a new engine. This the 2nd one that we've had and it happen to
Hello, there are no individual spares, so it will be a new engine.
Hi, I have the Quartz Electric 9.5. I switched the shower on and afrter 10s or so it cut out and took down all my circuit breakers. I switched off the isolating switch outside the shower, reset the breakers and tried the isolating switch again and it shorted the breakers again. Obvisouly there is a short circuit somewhere, but can i fix with spares (and whats it likely to be?) or do i need a complete new shower?

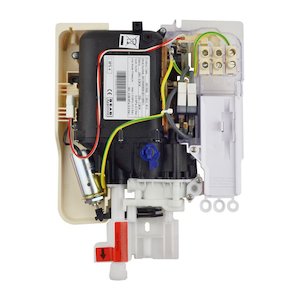

Hello, it will need a new 'Engine' part number 435902
The insulation has broken down on the heater element, leading to a dead short.
Hi,I have a Quartz Electric 8.5 that makes a buzzing noise when you press the on/off button and no water comes out?? The light shows around the on/off switch though! Any help would be great,
Hello, there are no spares, you have to replace the whole 'engine'
I have an aqualisa quartz electric 9.5kw. Even at the hotest setting the water is running cold. Do I need a new heating element? Can the element be relaced individually or do I need the complete shower engine?
Hello, you will need to replace the engine, individual parts are not available.
I have an aqualisa quartz digital shower and at the moment the lights keeping flashing and the water is running cold. The flow seems to be effected. I did have a plumber out previously in the year with the same problem and he just changed the thermostate setting and the problem was resolved. It has started doing the same thing again and a different plumber came and said he was not sure what the problem was but thought it might have been an air lock. He held the shower down for a few minutes and this seemed to put the problem right but once he had gone I tried it again but the problem has remained.
Hello, this is really is a job for Aqualisa technical to answer, they have the knowledge on this type of shower please call them on 01959 560010
Hi , If I buy a new Aqualisa Quartz Engine from you, does it come with the 2 years manufacturer's waranty?
Hello, yes you get the std Aqualisa warranty
Hi, I have a Aqualisa Quartz Electric 8.5 shower. The water has started to run through very slow and very hot, turning the dial to cold does not make any difference to the temperature or flow rate. I have removed the front cover and pushed the solenoid piston up until the water runs through and again it runs through very slow. I also noticed that when I do this some water is leaking from the internals of the unit. Do I need a new shower engine?

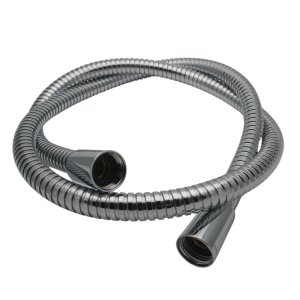

Hello, before buying an engine, make sure the shower head and hose are not causing the reduced flow, take them off and see how the water flows unrestricted, if it is still low, then a new engine will be required.
I have a client with a quartz electric 9.5 and when you push the start button nothing happens. Do yo do just the start button or do I need the complete engine?
Hello, you will need to see if it is the switch in the back of the cover, if it is not the switch, then you will need a new engine.
