Mira 415 (1993-2001) Shower Spares
- 26 spares listed
All available shower spares/replacement parts to fit the Mira 415 (1993-2001).

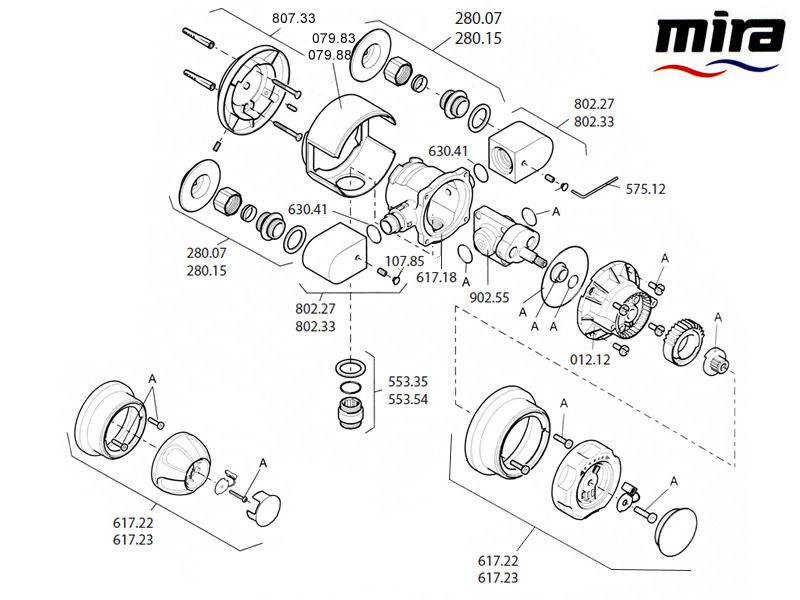

Use the main diagram to identify the shower spare(s) you need to replace. Then use the table below to locate your relevant part(s).
There are 22 currently available spares for the Mira 415 (1993-2001).
These are sorted by diagram reference first (if available) and then by product code in numerical / alphabetical order:
Do you have a question about the Mira 415 (1993-2001)?
Click the button below to send a question to one of our expert members of staff and we will email you back a direct response. If we feel the information might be useful to other customers, we will also show your question below for others to see.
hi, i have a mira 415 (1993-2001) shower but i can't shut it of completely,
i have to turn the knob an inch or so from the closed position to bring it to a minimal flow and apply some pressure to the front of the unit to bring it to a slowish drip,from this discription would you know what part i would need to fix it please, thanks....barry......
Hello, the shut off seals are split, you need to replace the cartridge
Good morning, hope you can help. I have a mira excel 415 shower unit fitted in my bathroom however, I'm not sure what year it was manufactured in and therefor not sure which cartridge to order.
Can you advise how I can find the year of manufacture?
Regards R E Thomas
If the control dials have a red override the shower was manufactured after 1993 to current part number 902.55 for cartridge
I have a Mira 415 shower (August 1996) and I would like to replace the wall outlet/cover shroud - to cover the pipe where the shower hose is attached. I am not sure if I need to purchase the Mira Response wall outlet or the Mira RAC cover shroud. I just wondered if you would know which I would need. I have tried the MIra Logic wall outlet but it was too small and would not fit over the pipe.

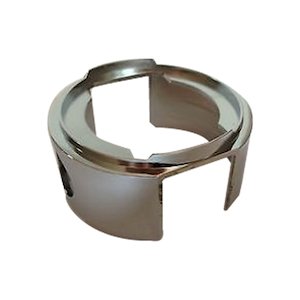

Hello, a 415 of that era should have Response fittings, the RAC 413.57 is just the shroud(cover), 411.22 is the internal white nylon assembly
