Mira Sport (2006-2012) (Sport) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Mira Sport (2006-2012) (Sport)

Manufacturer: Mira

Product Code: Mira Sport

Product Type: Electric Showers

Categories: mira electric showers, electric showers

All available shower spares/replacement parts to fit the Mira Sport (2006-2012) (Sport).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Hover over any image thumbnail in the table below to see a larger version of that product.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Mira inlet connector assembly (405.58) - 405.58 Mira inlet connector assembly (405.58)   Replaced (click to view) More Info
Mira inlet filter assembly (406.27) - 406.27 Mira inlet filter assembly (406.27) £8.80 Add to Basket More Info
Mira inlet clamp bracket assembly (416.38) - 416.38 Mira inlet clamp bracket assembly (416.38) £8.80 Add to Basket More Info
Mira thermal switch assembly (416.41) - 416.41 Mira thermal switch assembly (416.41) £12.40 Add to Basket More Info
Mira latching switch assembly (416.48) - 416.48 Mira latching switch assembly (416.48) £8.80 Add to Basket More Info
Mira solenoid coil assembly (416.51) - 416.51 Mira solenoid coil assembly (416.51) £14.80 Add to Basket More Info
Mira microswitch assembly (872.01) - 872.01 Mira microswitch assembly (872.01) £8.80 Add to Basket More Info
Mira 3-pin microswitch (872.28) - 872.28 Mira 3-pin microswitch (872.28) £8.80 Add to Basket More Info
Mira heater tank assembly - 7.5kW (1563.500) - 1563.500 Mira heater tank assembly - 7.5kW (1563.500) £89.95 Add to Basket More Info
Mira heater tank assembly - 9.0kW (1563.502) - 1563.502 Mira heater tank assembly - 9.0kW (1563.502) £91.20 Add to Basket More Info
Mira heater tank assembly - 9.8kW (1563.504) - 1563.504 Mira heater tank assembly - 9.8kW (1563.504) £91.20 Add to Basket More Info
Mira flow valve assembly (1563.507) - 1563.507 Mira flow valve assembly (1563.507) £38.55 Add to Basket More Info
Mira switching assembly (1563.509) - 1563.509 Mira switching assembly (1563.509) £16.60 Add to Basket More Info
Mira Sport front cover assembly - White (1563.511) - 1563.511 Mira Sport front cover assembly - White (1563.511) £24.05 Add to Basket More Info
Mira screw pack (1563.513) A 1563.513 Mira screw pack (1563.513) £8.80 Add to Basket More Info
Mira low flow neon assembly (1563.514) - 1563.514 Mira low flow neon assembly (1563.514) £8.80 Add to Basket More Info
Mira power neon assembly (1563.515) - 1563.515 Mira power neon assembly (1563.515) £8.80 Add to Basket More Info
Mira outlet connector assembly (1563.516) - 1563.516 Mira outlet connector assembly (1563.516) £8.80 Add to Basket More Info
Mira service tunnel and insert (1563.517) - 1563.517 Mira service tunnel and insert (1563.517) £8.80 Add to Basket More Info
Mira component pack - White (1563.518) B 1563.518 Mira component pack - White (1563.518) £8.80 Add to Basket More Info
Mira terminal block assembly (1563.519) - 1563.519 Mira terminal block assembly (1563.519) £11.45 Add to Basket More Info
Mira wire pack (1563.520) - 1563.520 Mira wire pack (1563.520) £8.80 Add to Basket More Info
Mira cover seal (1563.522) - 1563.522 Mira cover seal (1563.522) £8.80 Add to Basket More Info
Mira Sport front cover assembly - Chrome (1695.017) - 1695.017 Mira Sport front cover assembly - Chrome (1695.017) £83.50 Add to Basket More Info
Mira service tunnel and insert - Chrome (1695.018) - 1695.018 Mira service tunnel and insert - Chrome (1695.018) £39.85 Add to Basket More Info

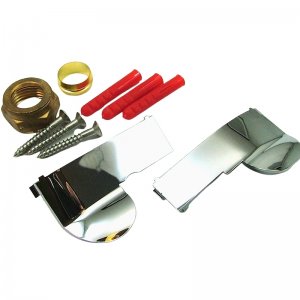

Mira component pack - Chrome (1695.019) B 1695.019 Mira component pack - Chrome (1695.019) £10.90 Add to Basket More Info
Mira Logic 22mm shower head holder - white (450.16) - 450.16 Mira Logic 22mm shower head holder - white (450.16) £8.80 Add to Basket More Info
Mira Logic shower hose 1.25m - Chrome (450.01) - 450.01 Mira Logic shower hose 1.25m - Chrome (450.01) £30.85 Add to Basket More Info
Mira Logic shower hose 1.25m - White (450.02) - 450.02 Mira Logic shower hose 1.25m - White (450.02) £30.85 Add to Basket More Info
Mira Logic Adjustable shower head handset White (450.34) - 450.34 Mira Logic Adjustable shower head handset White (450.34) £33.40 Add to Basket More Info
Mira Logic Adjustable shower head handset chrome (450.35) - 450.35 Mira Logic Adjustable shower head handset chrome (450.35) £35.95 Add to Basket More Info

No complete replacement products found.

Do you have a question about the "Mira Sport (2006-2012) (Sport)"?

Click the button below to write and send a question to one of our expert members of staff and we will e-mail you back a direct response. If we feel the information might be useful to other customers, we will add your question below for others to see.

Ask a Question

Hi, My shower which is a Mira Sport 9kw code underneath shower is J95B 17/11 2006-2012. The shower seems to stay on for a short while then it cuts out, after several minutes it will come back on but will then cut out again. The low flow light comes on. Could it be lime scale build up inside of the shower unit.
Regards Rob

If by 'cut out' you mead the flow, then the solenoid is failing, if you mean the heat cuts out, it may be the thermal cut out or pressure switch (flow valve)

I have a Mira Sport 9.0 Shower with the following markings underneath: J95B 42/11
I purchased it in early 2012 so I suspect that last set of numbers is the manufacture date.
For the last 10 days or so the water will suddenly go stone cold without any warning at all, and with out the low flow light coming on, in the middle of a shower. Then after a random length of time it will warm up again, for a period, and then go cold again. A local electrician has had a look at it and thinks that the thermostat is faulty?
My question is whether this is a right diagnosis and then is the part; Mira Thermal Switch Assembly (416.41) the correct replacement part?
Is there anything else that could be faulty that would cause a sudden intermittent loss of water temperature.
The local electrician is recommending replacing the whole shower unit, which I would like to avoid if at all possible!
Yours truly,

Hello, it sounds like the 416.41 thermal switch has become 'over sensitive' and is cutting in and out, replacing it should sort it out.

i have a mira sport shower that is leaking between the switch assembly and the tank.what part required?

Hello
You will require the flow valve and switch assembly if fitted before 2010 as the valve has been modified models 7.5,9.8,9.00 kw showers

I bought a Mira sport electric shower in February 2006, should I buy parts for the one up to 2005 or parts for 2006 onwards?
I was using the shower and the water flow dropped slightly and the water went cold, will it be the heater tank?
thanks

Hello, you need to check the shape of the push button on the cover, an oval symmetrical button is the older version, a tapered button is the newer one, but I am not sure what is wrong with your shower, a guess would probably be a faulty flow valve.
