Redring Expressions 500S (Expressions 500S) shower spares and parts | Redring Expressions 500S | National Shower Spares

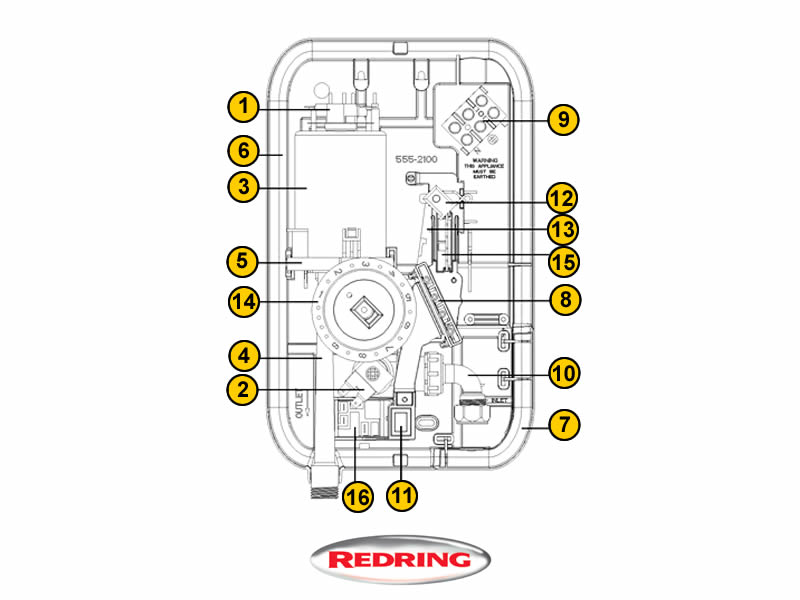

Redring Expressions 500S (Expressions 500S) shower spares breakdown diagram
View all available shower spares for this product
(Click the main diagram above to enlarge.)

You are viewing shower spares for:
Redring Expressions 500S (Expressions 500S)

Manufacturer: Redring

Product Code: Redring Expressions 500S

Product Type: Electric Showers

Categories: redring electric showers, electric showers

All available shower spares/replacement parts to fit the Redring Expressions 500S (Expressions 500S).

Use the main diagram on the left to identify the shower spare(s) you need to replace. Then use the table below to locate your part, view information about it, and add it to your Shopping Basket.

Hover over any image thumbnail in the table below to see a larger version of that product.

Need any help? Contact us or try our unique Shower Spares Finder.

Image Ref. Code Product Price Quantity   Details
Redring PRV washer (93795817) - 93795817 Redring PRV washer (93795817) £4.90 Add to Basket More Info
Redring thermal cut-out (TCO) (93597836) 1 93597836 Redring thermal cut-out (TCO) (93597836) £13.20 Add to Basket More Info
Redring microswitch assembly (Pressure) (93795804) - 93795804 Redring microswitch assembly (Pressure) (93795804) £7.90 Add to Basket More Info
Redring solenoid valve assembly (93590722) 2 93590722 Redring solenoid valve assembly (93590722) £17.15 Add to Basket More Info
Redring phased shut-down PCB (93550835) 15 93550835 Redring phased shut-down PCB (93550835) £19.80 Add to Basket More Info
Redring 1.25m shower hose - chrome (93797641) - 93797641 Redring 1.25m shower hose - chrome (93797641) £12.50 Add to Basket More Info
Redring inlet elbow (93792427) 10 93792427 Redring inlet elbow (93792427) £8.65 Add to Basket More Info
Redring basic single mode handset - white (93590738) - 93590738 Redring basic single mode handset - white (93590738) £17.10 Add to Basket More Info
Redring 1.25m shower hose - white (93797612) - 93797612 Redring 1.25m shower hose - white (93797612) £10.25 Add to Basket More Info
Redring latching switch assembly (93597891) 11 93597891 Redring latching switch assembly (93597891) £9.30 Add to Basket More Info

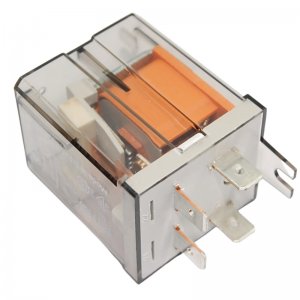

Redring phased shut-down relay (93597878) 16 93597878 Redring phased shut-down relay (93597878) £12.15 Add to Basket More Info
Croydex 18-25mm push on universal shower head holder - white (AM710122) - AM710122 Croydex 18-25mm push on universal shower head holder - white (AM710122) £6.00 Add to Basket More Info
Redring pressure switch lever kit (93590731) 13 93590731 Redring pressure switch lever kit (93590731) £10.05 Add to Basket More Info
Redring camshaft and adapter kit (93590793) 12 93590793 Redring camshaft and adapter kit (93590793) £7.90 Add to Basket More Info

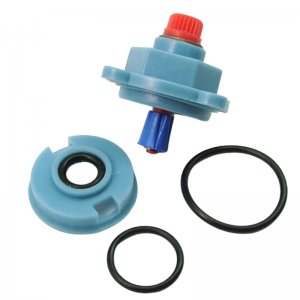

Redring flow/stabiliser valve assembly (93597893) - 93597893 Redring flow/stabiliser valve assembly (93597893) £17.60 Add to Basket More Info
Redring cylinder O'ring (93795809) - 93795809 Redring cylinder O'ring (93795809) £6.75 Add to Basket More Info
Redring terminal block assembly (93597886) 9 93597886 Redring terminal block assembly (93597886) £8.70 Add to Basket More Info
Redring case section (93597844) 7 93597844 Redring case section (93597844) £7.75 Add to Basket More Info

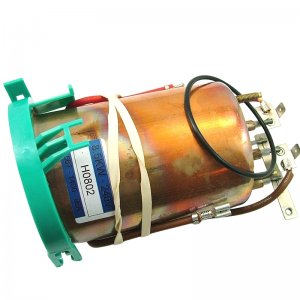

Redring heater can assembly - 8.5kW (93597888) 3 93597888 Redring heater can assembly - 8.5kW (93597888) £56.55 Add to Basket More Info
Redring neon PCB and bracket assembly (93597892) 8 93597892 Redring neon PCB and bracket assembly (93597892)   Discontinued More Info
Redring heater can assembly - 9.5kW (93597889) 3 93597889 Redring heater can assembly - 9.5kW (93597889) £56.55 Add to Basket More Info
Redring tank base assembly - 8.5/9.5kW (93597849) 4 93597849 Redring tank base assembly - 8.5/9.5kW (93597849) £64.60 Add to Basket More Info
Redring terminal block assembly (93794714) 9 93794714 Redring terminal block assembly (93794714) £7.90 Add to Basket More Info
Redring numbered drive dial (93597890) 14 93597890 Redring numbered drive dial (93597890) £10.50 Add to Basket More Info
Redring heater can assembly - 7.2kW (93597887) 3 93597887 Redring heater can assembly - 7.2kW (93597887) £56.55 Add to Basket More Info
Redring tank clip (93768309) 5 93768309 Redring tank clip (93768309) £8.50 Add to Basket More Info
Redring Expressions 500S front cover assembly (93597863) - 93597863 Redring Expressions 500S front cover assembly (93597863) £29.65 Add to Basket More Info
Redring tank base assembly - 7.2kW (93590711) 4 93590711 Redring tank base assembly - 7.2kW (93590711) £51.70 Add to Basket More Info
Redring Active 350S backplate assembly (93597885) 6 93597885 Redring Active 350S backplate assembly (93597885)   Discontinued More Info

No complete replacement products found.

Do you have a question about the "Redring Expressions 500S (Expressions 500S)"?

Click the button below to write and send a question to one of our expert members of staff and we will e-mail you back a direct response. If we feel the information might be useful to other customers, we will add your question below for others to see.

Ask a Question

I have a redring expressions 500s which about 6-7 years old when switched on it just pulsates then switches off after 3-4 seconds any ideas please what the problem can be thank Kieith

it could be the flow valve is faulty which is then causing the solenoid valve to shut down straight away, link below shows the internals to the shower
https://www.showerspares.com/redring_shower_spares/redring_all/redring_expressions_500s_expressions_500s/

Redring Expressions 500S Electric Shower 8.5kw
The overheat light on the unit is flashing and making a sparking sound when the shower is in use (obviously I am terrified to use the shower now!). Any idea what the problem could be?
Many thanks

Hello, you need an electrician to check this out, it could be a few things causing this, the overheat light is connected to the thermal cut out on the top of the heater tank.
do not use the shower until an electrician has checked it over.
